Three Phase Transformer Box Pads
Composite Three-Phase
Transformer Box Pads
The “BPI” series box pads are designed to mount three-phase pad-mounted transformers in the 3500 to 1500 pound weight class. The Depth provides additional space for cable radius and bending flexibility.
Cable Flexibility
Provides extra space for cable radius and bending flexibility
Weight Class Support
Designed for 3,500 to 15,000 pounds weight class
Easy Shipment
Designed for easy shipment and delivery
Pad-Mounted Transfers
Designed to mount three-phase pad-mounted transformers

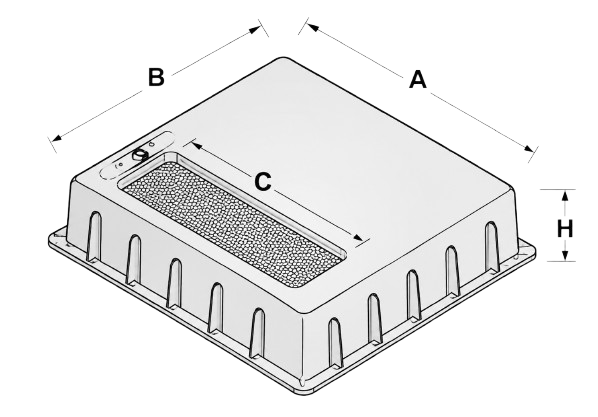

Key Dimensions
(inches)
|
BOX PAD CAT. NO. |
TOP SURFACE A B |
TOP OPENING C D |
HT. H |
MAXIMUM Transformer Weight |
PREVIOUS BOX PAD Cat. No. |
||
|---|---|---|---|---|---|---|---|
| BP3500 | 52 | 52.5 | 42 | 15.5 | 30 | 3,500 | BP3500 |
| BP3500-7K | 52 | 52.5 | 42 | 15.5 | 30 | 7,000 | BP3500-MTO-1 |
| BP3500A | 70 | 52.5 | 60 | 15.5 | 30 | 3,500 | BP3500A |
| BP3500A1-7K | 70 | 52.5 | 58 | 18 | 30 | 7,000 | BP3500A1-7K |
| BP3500A-7K | 70 | 52.5 | 60 | 15.5 | 30 | 7,000 | BP3500A-MTO-1 |
| BP3500A-10K | 70 | 52.5 | 60 | 15.5 | 30 | 10,000 | BP3500A-MTO-2 |
| BP3500B | 58 | 44 | 44 | 15.5 | 30 | 3,500 | BP3500B |
| BP5500 | 62 | 55 | 52 | 15.5 | 30 | 5,500 | BP5500 |
| BP5500A-24 | 90 | 67 | 75 | 20 | 24 | 5,500 | BP5500A-24 |
| BP5500A-24-10K | 90 | 67 | 75 | 20 | 24 | 10,000 | BP5500A-24-MTO-1 |
| BP5500A-24-12K | 90 | 67 | 75 | 20 | 24 | 12,000 | BP5500A-24-MTO-2 |
| BP6000-24 | 73 | 61 | 61 | 16 | 24 | 6,000 | BP6000-24 |
| BP6000-24-7K | 73 | 61 | 61 | 16 | 24 | 7,000 | BP6000-24-MTO-1 |
| BP6000-24-10K | 73 | 61 | 61 | 16 | 24 | 10,000 | BP6000-24-MTO-2 |
| BP7000 | 72 | 72 | 48 | 18 | 32 | 7,000 | BP7000 |
| BP7000-10 | 72 | 72 | 48 | 18 | 10 | 7,000 | BP7000-10 |
| BP7000-10-12K | 72 | 72 | 48 | 18 | 10 | 12,000 | BP7000-10-12K |
| BP7000-15 | 72 | 72 | 48 | 18 | 15 | 7,000 | BP7000-15 |
| BP7000-24 | 72 | 72 | 48 | 18 | 24 | 7,000 | BP7000-24 |
| BP7000-36 | 72 | 72 | 48 | 18 | 36 | 7,000 | BP7000-36 |
| BP7000-36-MTO-10 | 72 | 72 | 60 x 19 | 60 x 19 | 36 | 7,000 | BP7000-36-MTO-10 |
| BP7000A-18 | 75 | 63 | 60 | 18 | 18 | 7,000 | BP7000A-18 |
| BP7000-10K | 72 | 72 | 48 | 18 | 32 | 10,000 | BP7000-MTO-1 |
| BP7000-12K | 72 | 72 | 48 | 18 | 32 | 12,000 | BP7000-MTO-2 |
| BP7000-15K | 72 | 72 | 48 | 18 | 32 | 15,000 | BP7000-MTO-3 |
| BP7000-17K | 72 | 72 | 48 | 18 | 32 | 17,000 | BP7000-MTO-4 |
| BP7569-18-10K | 75 | 69 | 58 | 18 | 18 | 10,000 | BP7569-18-10K |
| BP7569-36-10K | 75 | 69 | 58 | 18 | 36 | 10,000 | BP7569-36-10K |
| BP8181-7K | 81 | 81 | 69 | 25 | 32 | 7,000 | BP8181-7K |
| BP11000 | 73 | 81 | 61 | 16 | 30 | 11,000 | BP11000 |
| BP11000-12K | 73 | 81 | 61 | 16 | 30 | 12,000 | BP11000-12K |
| BP11000-MTO-2 | 73 | 81 | 62 | 30 | 30 | 12,000 | BP11000-MTO-2 |
| BP14000 | 77.5 | 63 | 62 | 21 | 30 | 14,000 | BP14000 |
| BP14000-7K | 77.5 | 63 | 62 | 21 | 30 | 7,000 | BP14000-MTO-1 |
| SG7467-14K | 74 | 67 | 64 | 18 | 32 | 14,000 | SG7467-MTO-14000 |
| SG-8167-7K | 81 | 67 | 64 | 18 | 32 | 7,000 | SG-8167-7K |
| SG-8576-16K | 85 | 76 | 71 | 22 | 32 | 16,000 | SG-8576-16K |
Quality by Design
Key Features
Wood free structural construction
Constructed from durable, non corrosive, thermoset, polyester resin reinforced with fiberglass
Gel-coated turf green outside, pigmented buff green inside throughout the composite
Shaped for easy stacking, storage and shipment
Low inorganic filler content(20% by weight) ensures durability with minimum structural degradation over time
Eye bolts installed for lifting ; lag holes can be drilled in the field as needed
Smooth outside surface with top-surface non-skid
Need Complete Specifications?
Contact Us for data sheets with complete specifications and dimensions. Our team is ready to provide detailed technical information, CAD drawings, material specifications and custom solutions tailored to your project needs. Get the information you need to make informed decisions.
