Single Phase Transformer Box Pads
Single Phase Composite
Transformer Box Pads

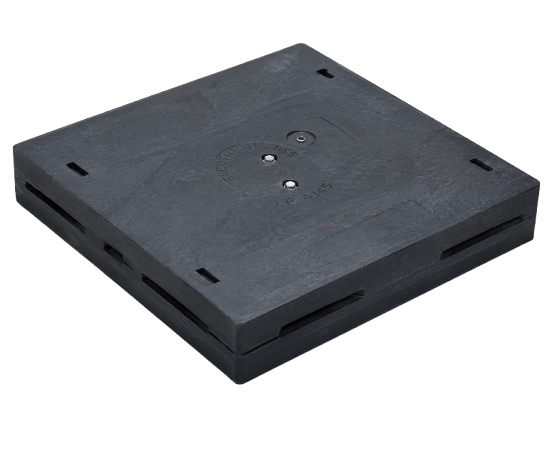

Durable composite transformer box pads designed to provide strong, stable support for single-phase transformers. Built for long-lasting performance, reliability, and demanding underground electrical applications.
Durable & Corrosion Resistant
Constructed from durable, non-conductive, corrosive resistant fiberglass reinforced polyester
Enhanced Strength & Stability
Ribbed construction provides enhanced strength, durability, and long-lasting structural stability.
Easy & Efficient Installation
Lightweight construction designed quick, and efficient installation, saving time and simplifying the installation process.
Adjustable Height Options
Intermediate height models bridge the gap between standard 32-inch deep pads and 4-inch ground-level pads.
|
BOX PAD CAT. NO. |
TOP SURFACE | TOP OPENING |
HT. H |
||
|---|---|---|---|---|---|
| A | B | C | D | ||
| BP2000 | 37 | 43 | 26 | 31.5 | 32 |
| BP2000-24 | 37 | 43 | 26 | 31.5 | 24 |
| **BP2000-48 | 37 | 43 | 25 | 31 | 48 |
| BP2000A | 37 | 43 | 26 | 31.5 | 30 |
| BP2000A-1 | 37 | 43 | 26 | 29 | 30 |
| BP2000A-2 | 37 | 43 | 28 | 24 | 30 |
| BP2000E | 37.5 | 48 | 26 | 31.5 | 32 |
| BP2000F-1 | 37 | 43 | 22 | 24 | 32 |
| BP2000F1-24 | 37 | 43 | 22 | 24 | 24 |
| BP2000F-2 | 37 | 43 | 24 | 26 | 32 |
| BP2000G | 37 | 52 | 22 | 24 | 30 |
| BP2000G-24 | 37 | 52 | 22 | 24 | 24 |
| BP2000G-MTO-1 | 37 | 52 | 27 | 42 | 32 |
| BP2000G1-MTO-2 | 37 | 52 | 22 | 24 | 32 |
| BP2000H | 42 | 48 | 29 | 26 | 32 |
| BP2000H-1 | 42 | 48 | 26 | 22.5 | 32 |
| BP2000J1 | 37 | 43 | 21 | 12.5 | 34 |
| BP2000J1-24 | 37 | 43 | 21 | 12.5 | 24 |
| BP2000J2-24 | 37 | 43 | 26 | 12 | 24 |
| BP2000J-24 | 37.5 | 43 | 26 | 24 | 24 |
| BP2000J-24-CE | 37 | 43 | 26 | 24 | 24 |
| BP2000J3 | 37 | 43 | 20 | 20 | 32 |
| BP2000J3-24 | 37 | 43 | 20 | 20 | 24 |
| *BP2000J3-24-CE | 37 | 43 | 20 | 20 | 24 |
| BP2000J4-24 | 37 | 43 | 25 | 25 | 24 |
| BP2000J-6 | 37 | 43 | 26 | 14 | 24 |
| BP2000P-30 | 36.5 | 46 | 22 | 24 | 30 |
| BP2000P-30-MTO-1 | 36.5 | 46 | 23 | 36 | 30 |
| BP2000P-30-MTO-2 | 36.5 | 46 | 26.5 | 36 | 30 |
| BP2000R | 42 | 43 | 22 | 20 | 30 |
**2-pc. design
|
BOX PAD CAT. NO. |
TOP SURFACE | TOP OPENING |
HT. H |
||
|---|---|---|---|---|---|
| A | B | C | D | ||
| BP2000-15 | 37 | 43 | 26 | 31.5 | 15 |
| BP2000A-15 | 37 | 43 | 24 | 14 | 15 |
| BP2000A1-15 | 37 | 43 | 25 | 12 | 15 |
| BP2000A2-15 | 37 | 43 | 21 | 12 | 15 |
| BP2000D-15 | 48 | 48 | 30 | 30 | 15 |
| BP2000F1-16 | 37 | 43 | 22 | 24 | 16 |
| BP2000F1-20 | 37 | 43 | 22 | 24 | 20 |
| BP2000G-15 | 37 | 52 | 22 | 24 | 15 |
| BP2000H1-15 | 37 | 43 | 26 | 22.5 | 15 |
| BP2000J-15 | 37 | 43 | 26 | 24 | 15 |
| BP2000J3-15 | 37 | 43 | 20 | 20 | 15 |
| BP2000K-15 | 37 | 43 | 22 | 24 | 15 |
| BP2000L-15 | 40 | 52 | 26 | 18 | 15 |
| BP2000M-15 | 40 | 44 | 26 | 18 | 15 |
| BP2000M1-15 | 40 | 44 | 26 | 14 | 15 |
| BP2000N-15 | 40 | 43 | 26 | 30 | 15 |
| BP2000P-15 | 36.5 | 46 | 22 | 24 | 15 |
| BP2000Q-15 | 38 | 56 | 22 | 24 | 15 |
| BP2000V-15 | 37 | 37 | 21 | 12 | 15 |
| BP2000V1-15 | 37 | 37 | 22 | 16 | 15 |
| BP2000V2-15 | 37 | 37 | 25 | 25 | 24 |
| BP2000V-C | Cover for above | ||||
| BP2000-18 | 42 | 42 | 25 | 25 | 18 |
| BP2000S-18 | 39 | 43 | 26 | 26 | 18 |
| BP2000T-18 | 25 | 40 | 16 | 12 | 18 |
| LP-4145 | 45 | 41 | 25 | 10 | 4 |
Product Highlights
Product Overview
A complete line of box pads in various heights are available to accommodate 15KVA – 167KVA single phase transformers.
These box pads may be used as a below grade primary load break junction box or vault for looping cable.
If the transformer is not installed at the same time, the vaults can be pad-vaults for several popular pad mounted switchgear.
The BP2000 all composite box Pad contains no wood and is designed to outlast in many cases the transformer.
Key Features
Constructed from durable, non-conductive, corrosive resistant fiberglass reinforced polyster.
Ribbed design provides enhanced durability, strength and Structure stability.
The intermediate height models offered alternatives between standard and ground level pads.
Designed for below grade primary load or vault for looping cable.break junction box
ideal as paid-vaults for several popular pad mounted switchgear.
Engineered for long service life with superior durability.
Application Solutions
Applications
Below Grade Use
Used as a below grade primary load break junction box or vault for looping cable
Pad-Vault Application
Also serve as a pad-vaults for several popular pad-mounted switchgear
Looping Cable Functionality
Ideal for looping cable in underground electrical systems
Multiple Applications
Suitable for junction boxes, vaults and pad-mounted switchgear
Need Complete Specifications?
Contact Us for data sheets with complete specifications and dimensions. Our team is ready to provide detailed technical information, CAD drawings, material specifications and custom solutions tailored to your project needs. Get the information you need to make informed decisions.
