Switchgear Pad Vaults
Switchgear Pad Vaults
These pad vaults are designed to accommodate switchgear of leading manufacturers. They are manufactured from durable, non-corrosive, thermoset polyester resin reinforced with fiberglass. Low inorganic filler content (21% by weight) assures durability with minimum structural degradation over time.
Product Applications
Low Inorganic Filler
Fiberglass reinforced
Available Models
Performance Benefits
Key features and Benefits
Light Weight & Easy Installation
Lightweight, easily installed and leveled
Easily Drilling and Mounting
Easily drilled for switchgear lag bolts or mounting brackets
Easy Stacking & Shipping
Shaped for easy stacking, storage and shipment
Durable & Corrosion Resistant
Constructed from durable, non-corrosive, thermoset polyester resin
Turf Green Exterior
Gel-coated turf green outside; pigmented turf green inside throughout the composite
High Load Bearing Capacity
Top flange and sides are multi-ribbed for high load bearing capacity
| BOX PAD CAT. NO. |
TOP SURFACE A B |
TOP OPENING C D |
HT. K |
||
|---|---|---|---|---|---|
| BP2000G-MTO-1 | 52 | 37 | 42 | 27 | 32 |
| BPS-7240A-15 | 72 | 40 | See Drawing below | ||
| BPS-7240B-15 | 72 | 40 | See Drawing below | ||
| SG-5544 | 55 | 44 | 43 | 32 | 32 |
| SG-5544-C | Cover for above | ||||
| SG-5757 | 57 | 57 | 43 | 43 | 30 |
| SG-5844 | 58 | 44 | 48 | 33 | 30 |
| SG-5844-20 | 58 | 44 | 48 | 33 | 20 |
| SG-6270 | 62 | 70 | 51 | 59 | 32 |
| SG-6270-C | Cover for above | ||||
| SG-6270-20 | 62 | 70 | 51 | 59 | 20 |
| SG-6270-24 | 62 | 70 | 51 | 59 | 24 |
| SG-6270-36 | 62 | 70 | 51 | 59 | 36 |
| SG-6363-OIL | 63 | 63 | 51 | 51 | 32 |
| SG-6549 | 65 | 49 | 51 | 39 | 32 |
| SG-6656 | 66 | 56 | 52 | 42 | 32 |
| SG-7240 | 72 | 40 | 52 | 28 | 32 |
| SG-7245 | 72 | 45 | 60 | 33 | 30 |
| SG-7245A | 72 | 45 | 33 | 18 | 30 |
| SG-7245A-MTO-1 | 72 | 45 | 45 | 28 | 31 |
| SG-7245A-MTO-2 | 72 | 45 | 30 | 33 | 31 |
| SG-7245A-MTO-3 | 72 | 45 | 60 | 33 | 31 |
| SG-7245A-MTO-4 | 72 | 45 | 57 | 33 | 31 |
| SG-7245A-MTO-5 | 72 | 45 | 48 | 33 | 31 |
| SG-7378 | 73.5 | 78 | 59.5 | 68 | 32 |
| SG-7378A-20 | 73.5 | 78 | 55.5 | 60 | 20 |
| SG-7454-36 | 74 | 54 | 60 | 40 | 36 |
| SG-7463-36 | 74 | 63 | 60 | 49 | 36 |
| SG-7467 | 74 | 67 | 64 | 18 | 32 |
| SG-7835 | 78 | 35 | 68 | 25 | 30 |
| SG-7836 | 78 | 36 | 68 | 26 | 30 |
| SG-7957 | 79 | 57 | 65 | 43 | 32 |
| SG-7957-MTO-1 | 79 | 57 | 65 | 34 | 32 |
| SG-7957-MTO-2 | 79 | 57 | 62 | 34 | 32 |
| SG-7957-MTO-3 | 79 | 57 | 62 | 43 | 32 |
| SG-8085 | 80 | 85 | 70 | 75 | 32 |
| SG-8167 | 81 | 67 | 68 | 18 | 32 |
| SG-8559 | 85 | 59 | 71 | 48 | 32 |
| SG-8576 | 85 | 76 | As Needed | 32 | |
| SG-8576-36-OIL | 85 | 76 | 19 x 62 | 19 x 62 | 36 |
| SG-8587-20-OIL | 85.5 | 87.5 | 62.75 | 64.75 | 20 |
| SG-8590 | 85 | 90 | 75 | 76 | 32 |
| SG-8646 | 86 | 46 | 72 | 17 | 32 |
| SG-8770 | 87 | 70 | 76 | 59 | 32 |
| SG-8878-36 | 88 | 78 | 14 x 64 | 14 x 64 | 36 |
| SG-8989 | 89 | 89 | 75 | 75 | 32 |
| SG-8989A | 89 | 89 | 60 | 72 | 32 |
| SG-9049 | 90 | 49 | 76 | 39 | 32 |
| SG-9073-OIL | 90 | 73 | 76 | 59 | 32 |
| SG-9654-36 | 96 | 54 | 82 | 40 | 36 |
| SG-9680-24-OIL | 96 | 80 | 21 x 65 | 21 x 61 | 24 |
| SG-9873-OIL | 98 | 73 | 84 | 59 | 32 |
| SG-10086-OIL | 100.5 | 86.5 | 86.5 | 72.5 | 32 |
| SG-10467 | 104 | 67 | 94 | 18 | 32 |
| SG-10473 | 104 | 73 | 94 | 18 | 32 |
| SG-10793-36-OIL | 107 | 93 | 93 | 79 | 36 |
| SG-11276 | 112 | 76 | As Needed | 32 | |
| SG-11276-36-OIL | 112 | 76 | 94 | 18 | 36 |
| SG-11276-MTO-1 | 112 | 76 | 96 | 48 | 36 |
| SG-11278 | 112 | 78 | As needed | 32 | |
| SG-12273 | 122 | 73 | As needed | 32 | |
| SG-12273-MTO-3 | 122 | 73 | 107 | 18 | 32 |
| SG-12753-24 | 127 | 53 | 115 | 41 | 24 |
| SG-14054-36 | 140 | 54 | As needed | 36 | |
| SG-14054A-36 | 1140 | 54 | 111 | 40 | 36 |
The BPS-7240A-15 And BPS-7240B-15
These combination box pads designed for a transfer type switch/meter mounted on one end and a single phase pad-mounted transformer on the other end.<br> Applications include:
- Backup source with critical applications
- Offset energy cost at peak loading intervals
- Allows private power generators (wind, internal combustion, solar, etc.) to switch and meter power with local power company
Note: Dimensions are measured at the
intersection of projected adjacent planes.
| BOX PAD | TOP SURFACE | TOP OPENING | TOP OPENING | UNITS/ PALLET |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | G | H | I | J | L | M | ||
| BPS-7240A-15 | 72 | 40 | 8 | 24 | 3.5 | 81 | 49 | 15 | 10 | 18 | 10 |
| BPS-7240B-15 | 72 | 40 | 14 | 24 | 5 | 81 | 49 | 15 | 6 | 18 | 10 |
| COVERS: Suffix with "C" - Example: BPS-7240A-15-C | |||||||||||

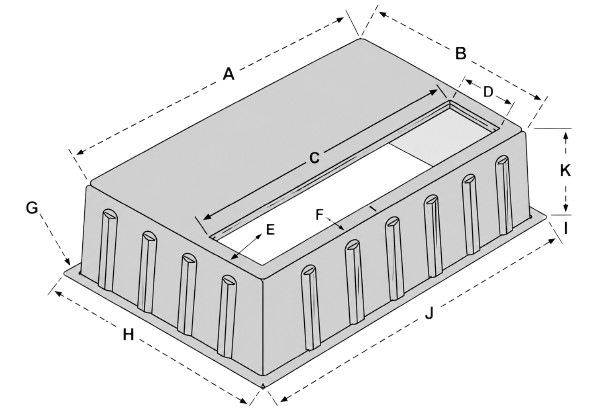

| BOX PAD CAT. NO. |
TOP SURFACE | TOP OPENING | UNITS/ PALLET |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | ||
| SG-10467 | 104 | 67 | 94 | 18 | 5 | 5 | 4 | 83 | 120 | 32 | 10 |
| SG-10473 | 104 | 73 | 94 | 18 | 5 | 5 | 4 | 89 | 120 | 32 | 10 |
| SG-7245A | 72 | 45 | 33 | 18 | 6 | 6 | 4 | 57 | 84 | 30 | 10 |
| SG-7467 | 74 | 67 | 64 | 18 | 5 | 5 | 4 | 83 | 90 | 32 | 10 |
Pad -Vaults for S&C Vista Switchgear
Need Complete Specifications?
Contact Us for data sheets with complete specifications and dimensions. Our team is ready to provide detailed technical information, CAD drawings, material specifications and custom solutions tailored to your project needs. Get the information you need to make informed decisions.
